Ship Collision Prevention/Analysis/Representation System

The ship collision prevention/analysis/rendering system interlocks with the ships’ maritime traffic information systems based on the patented technology called the Multiple Ship Collision Risk Identification Support System to assess collision risk for dozens of ships in real time and provides vessel operators with information on the ship at the highest risk of collision. There is a ship collision prevention system, ship collision accident analysis systems, and education/training system.

Multiple Ship Collision Prevention System

  • SW Modularization Products

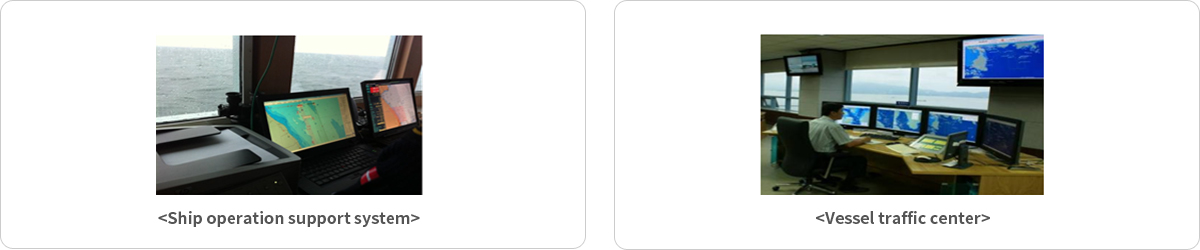

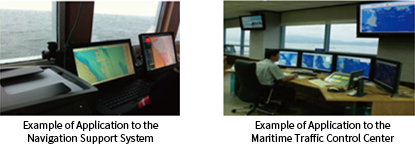

    Interlocks with the ships’ or VTS’ maritime traffic information systems (AIS, RADAR, ECDIS)

  • HW Products

    Assesses the collision risk for dozens of ships in real time and notifies the vessel operator of the risks with colors and alarm sounds

Ship Collision Analysis and Rendering (2D/3D) System

  • Mobile system and rendering system for field support (2D/3D)
  • Workstation-type ship collision analysis and reproduction system (2D/3D)

Patented『Multiple Ship Collision Risk Identification Support System』

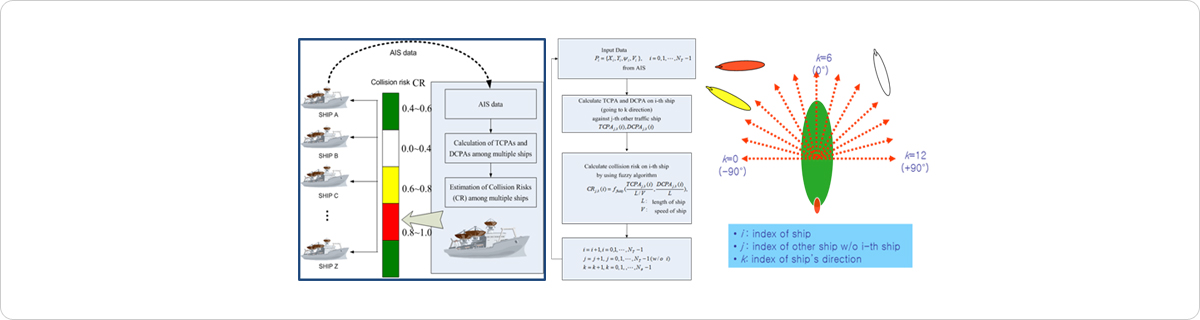

Concept: Real-Time Identification of Collision Risks of Multiple Ships

  • The probability of collision from various directions for each combination of dozens of ships (N ships) (nC2) is calculated to determine and provide the information on the risk of collision for each ship (naval vessel) and the one with the highest risk of collision
  • Use marine traffic information (from automatic identification system, etc.) to automatically calculate the risk of collision among dozens of ships
  • Presents the ships in the descending order of risk level for the user to grasp the information with ease

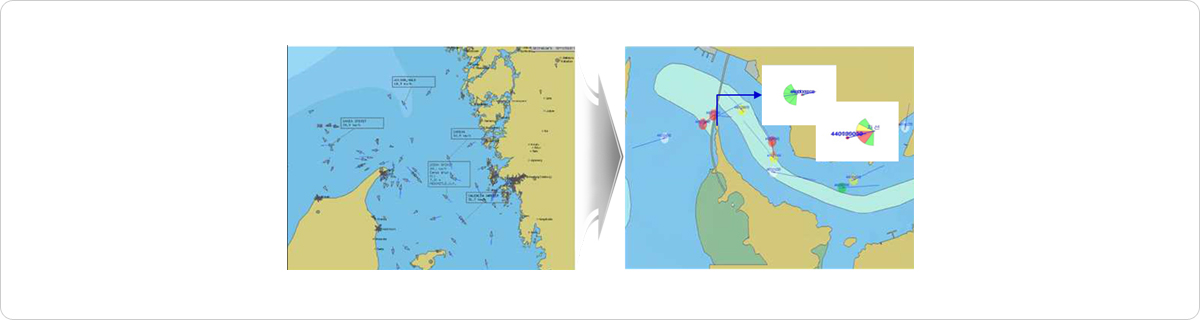

  • Automatically assesses the group of ships with the highest risk of collision and provides the results

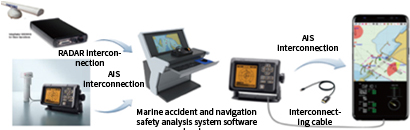

  • Can be interlinked with multiple ship collision risk identification software, ECDIS, VTS, AIS, and radars

Windows-Based Real-Time Ship Collision Prevention System

Real-Time Ship Collision Prevention System for Installation on Board

  • ECDIS interconnection
  • AIS interconnection
  • Display of one’s own position and the positions of other ships
  • Display of the risk level of ship collision
  • Display of a list of ship collision risks in a descending order
  • Display of an alarm message and an alarm sound in case there is a risk of collision

Real-Time Ship Collision Prevention System for Ship Monitoring Purposes

  • Real-Time Ship Collision Prevention System for Ship Monitoring Purposes
  • Supports NMEA-0183 standard interface

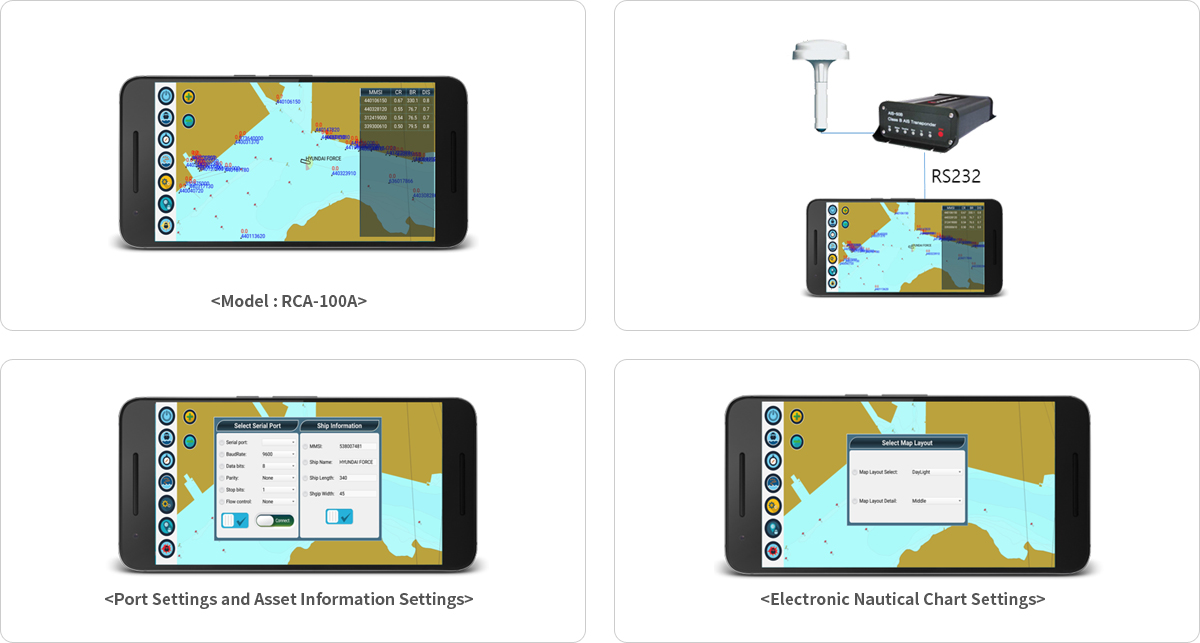

Android-Based Real-Time Ship Collision Prevention System

Real-Time Ship Collision Prevention System for Installation on Board

  • AIS interconnection
  • Display of one’s own position and the positions of other ships
  • Display of the risk level of ship collision
  • Display of a list of ship collision risks in a descending order
  • Display of an alarm message and an alarm sound in case there is a risk of collision

Ship Collision Analysis System

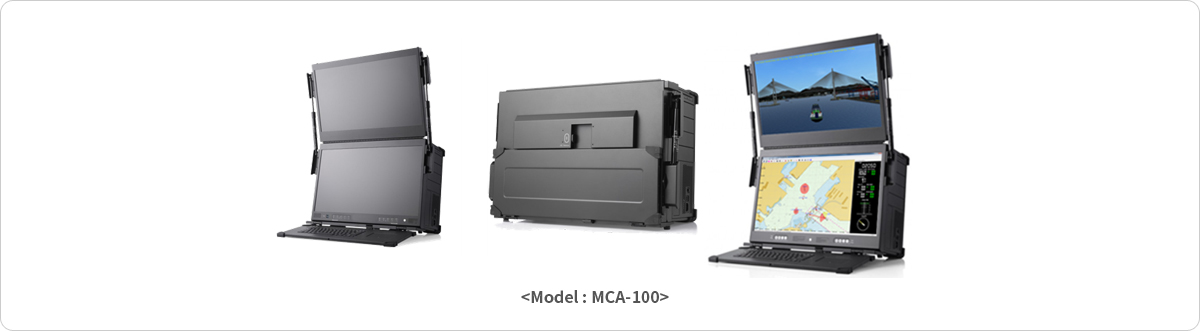

Ship Collision Analysis System

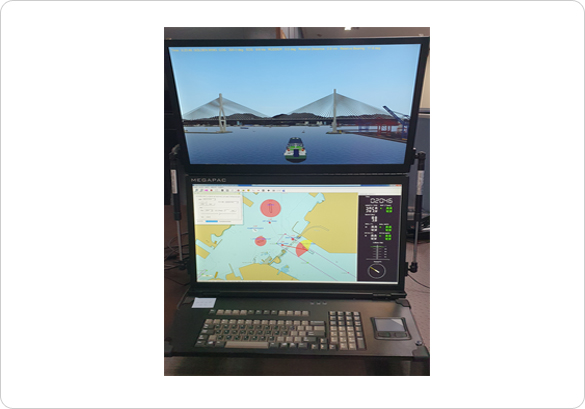

  • 3D model display
  • Upper monitor: 3D display screen
  • Lower monitor: 2D electronic nautical chart display screen
  • In the event of an accident, field investigators and researchers can use this system to analyze the cause of the accident in the field in real time
  • Supports real-time analysis of the cause of ship collision on the scene of the accident using various navigation information from ATS of a nearby VTS
  • External Information
    • - Display: 2 x 23”, 16:9 Display, 4K Display
    • - Dimensions: 15.12” x 23.11” x 9.02” (H x W x D)
    • - Resolution: 300 cd/m2 brightness / 1000:1 contrast
    • - Weight: ~45 lbs.

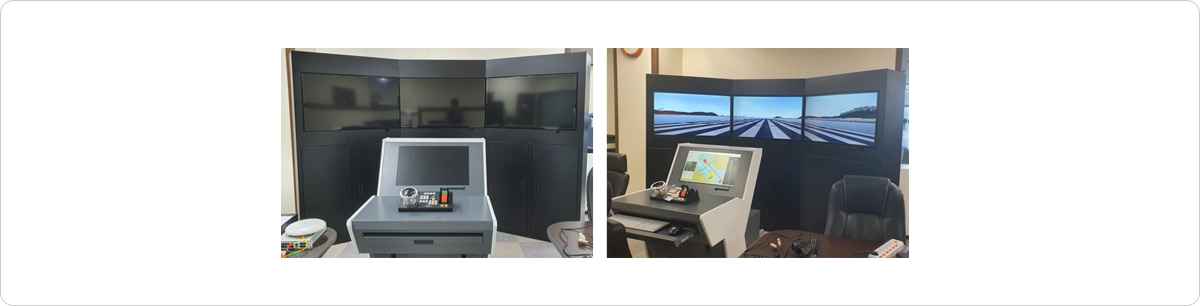

Fixed-Type Ship Collision Analysis System

  • Console desk: Display of one’s own ship and other ships on 2D electronic charts and the results of collision risk calculations
  • Display panel (3CH): 3D model display
  • Images rendered based on the ship collision data
  • Education/training based on accident analysis and avoidance simulation
  • Education and training system and avoidance of ship collisions (can be interconnected with a ship operation simulator)

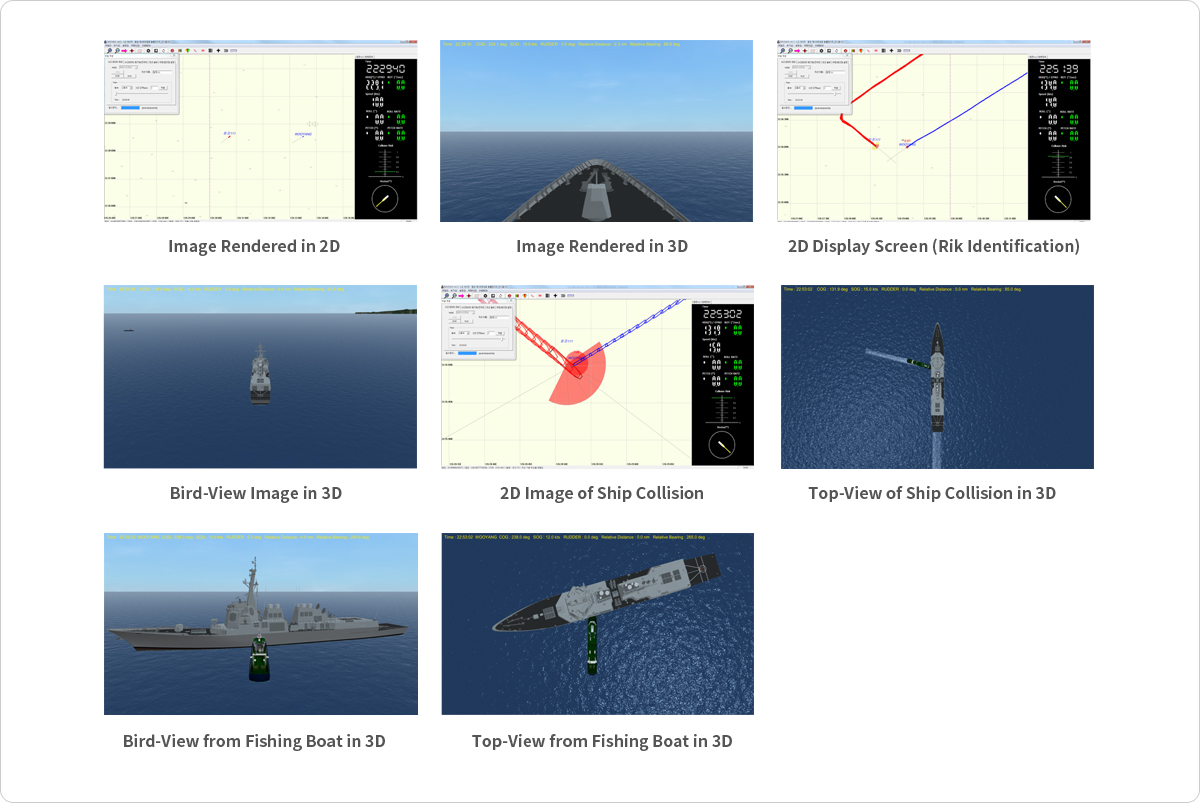

Example of Ship Collision Analysis and Rendering (2D/3D) System Application

Analysis of Collision Between Container Ship 000 and Container Ship 000

  • Date and time of collision: Aug. 19, 2009 at 00:25
  • Collision location: 335 degrees and 690m from the lighthouse on the breakwater of the northern inner harbor of the Port of Busan

Analysis of Collision Between Container Ship 000 and Container Ship 000

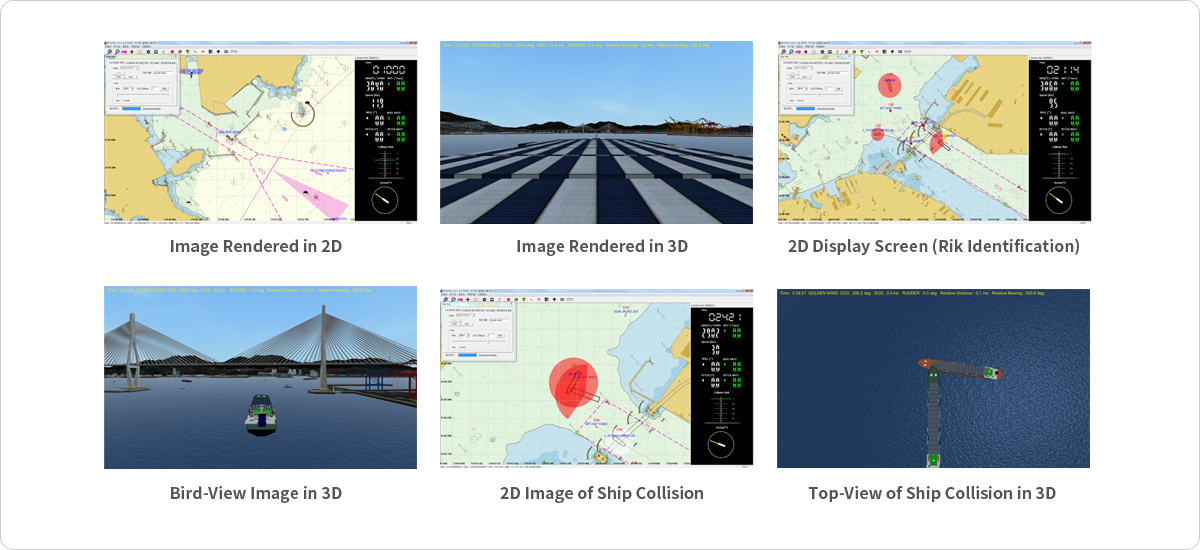

Viewpoints and Effects on the 3D Rendering Software

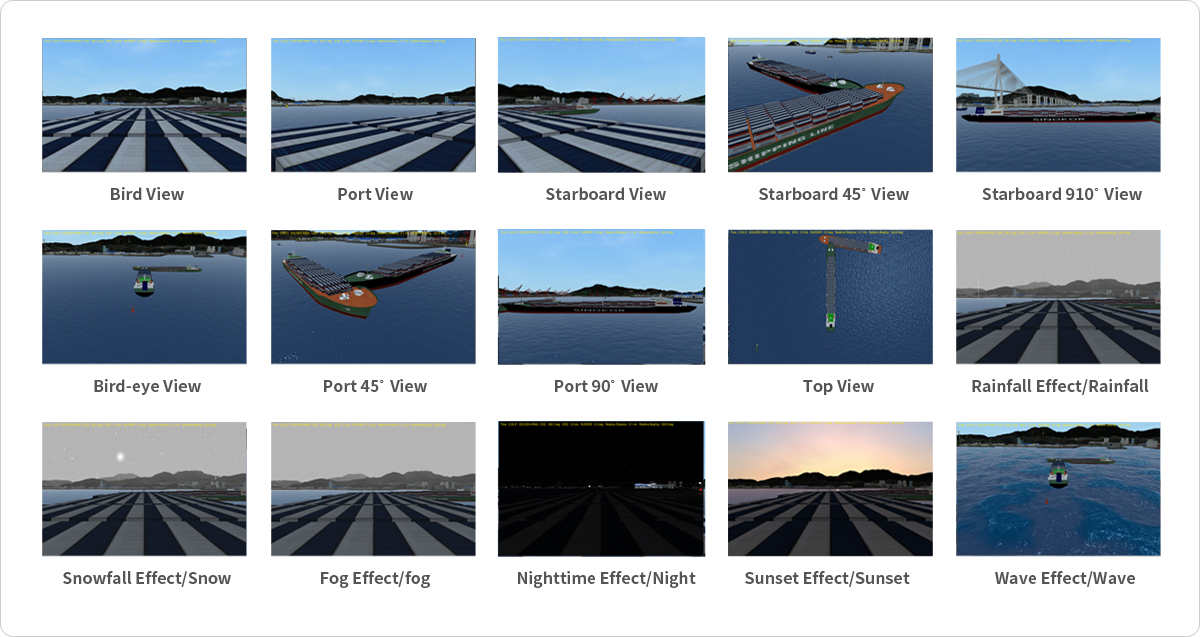

Diverse Viewpoints and Effects on the 3D Rendering Software
