AIS Receiver based Small Ship Collision Accident Prevention System

  • The system prevents ship collision accidents by providing information with audio-visual alarm of the collision risk between the own ship and the surrounding ships by integrating the AIS receiver embedded Bluetooth and the ship collision accident prevention system in small ship without AIS receiver.
  • The system provides equipment capable of the Bluetooth interface function even for the ships equipped with existing AIS transceiver.

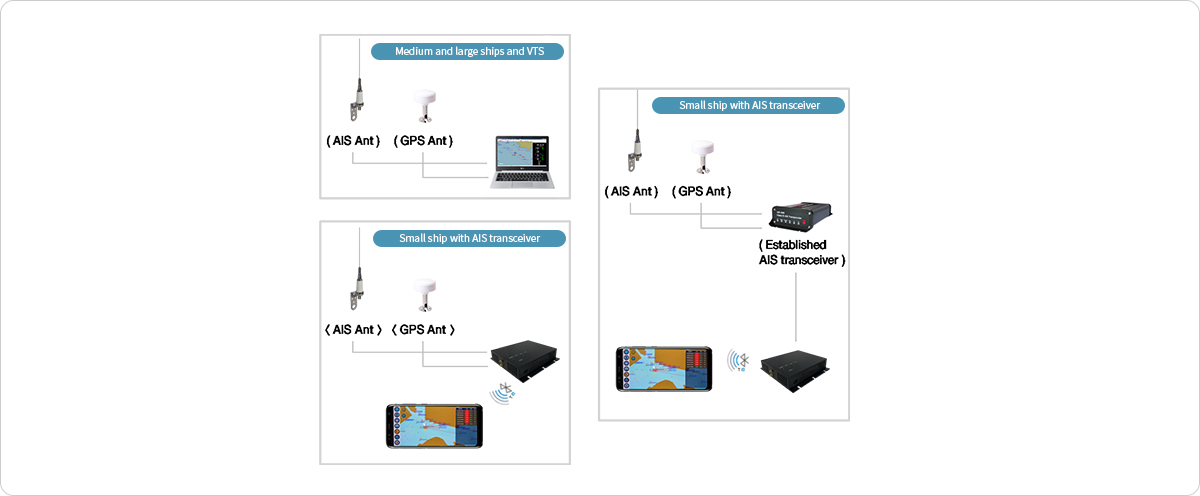

System Configuration

『Multiple Ships Collision Risk Identification』 Patent Technology

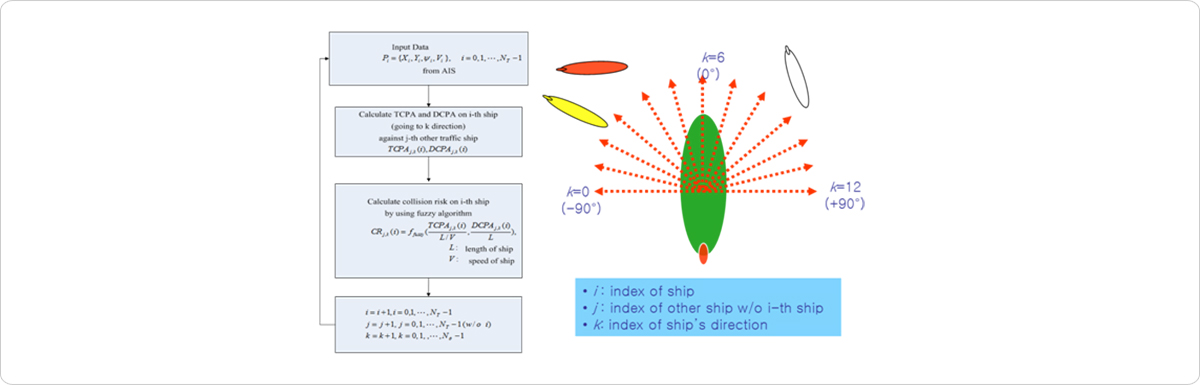

  • Identification Concept
    • - Calculate all possible collisions of all combinations (nC2) for dozens of vessels, and
      provide information of the collision risk for each vessel and the maximum collision risk identification in real time
  • - Automatically calculate the collision risk between dozens of ships using AIS, etc
  • - Easy to identify by prioritizing risks
  • - Automatically assess and provide the group of ships with the highest risk of collision
  • - Support for multiple-ships collision risk identification SW to ECDIS, VTS, AIS and R/D can be integrated

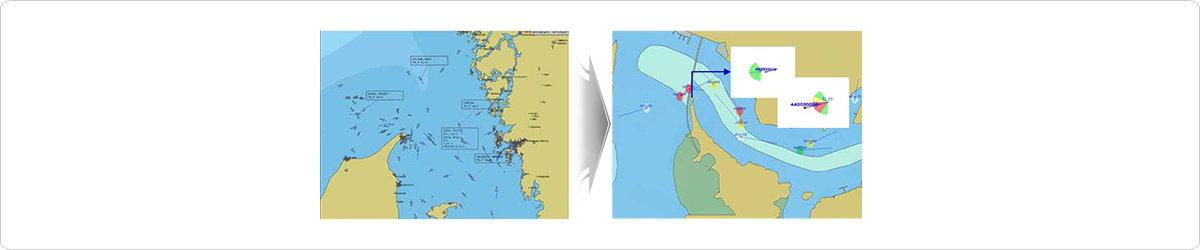

Real Time Ship Collision Prevention System

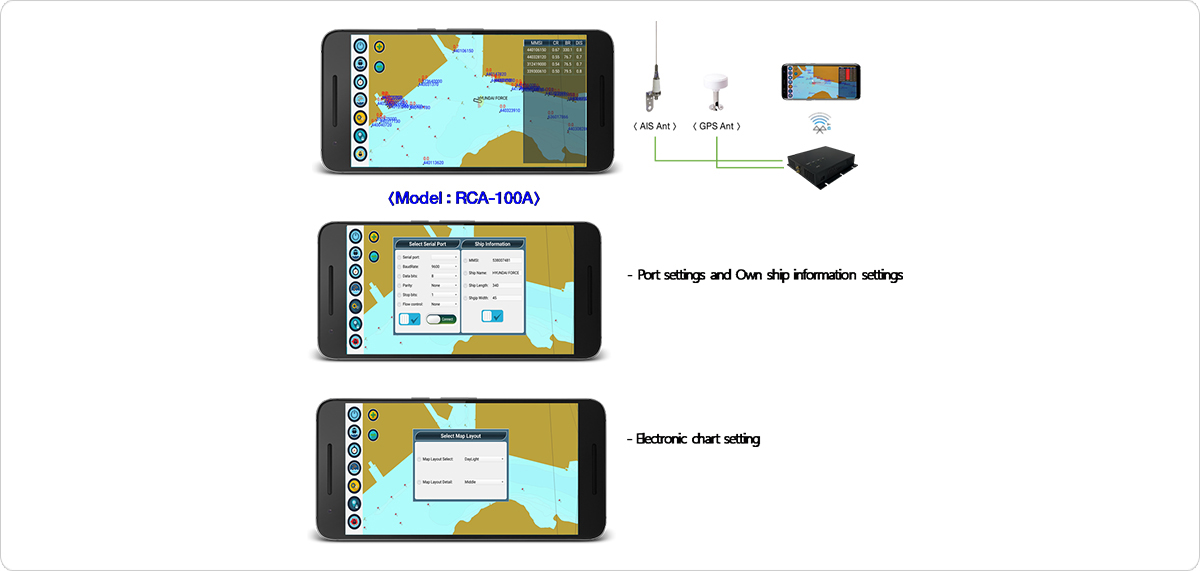

  • Android-based Ship Collision Prevention System SW
  • Real-time Ship Collision Prevention System for Ship
    • - AIS and RADAR equipment interworking function
    • - Own ship and other ship display
    • - Collision risk vessel display
    • - Display of collision risk ship priority list
    • - Hazard alarm display and warning sound playback

Products

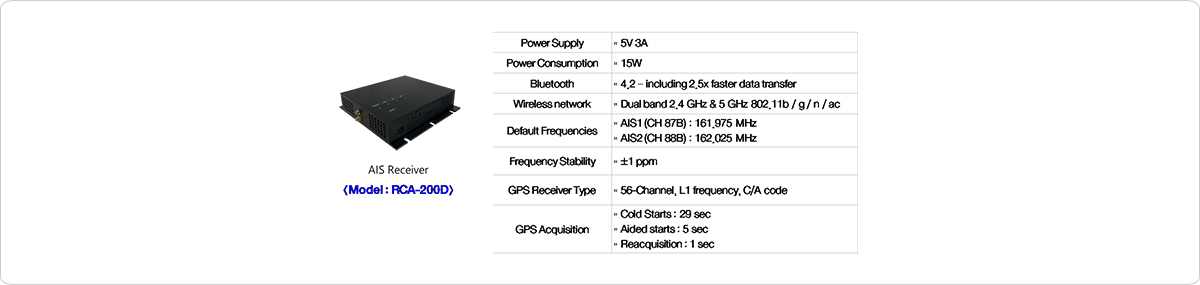

  • AIS Receiver Specifications

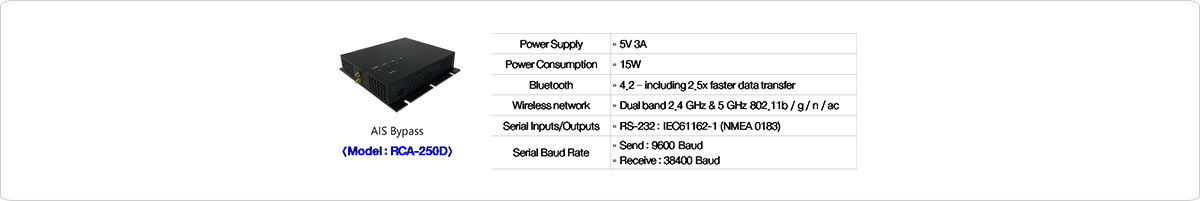

  • AIS Bypass Specifications

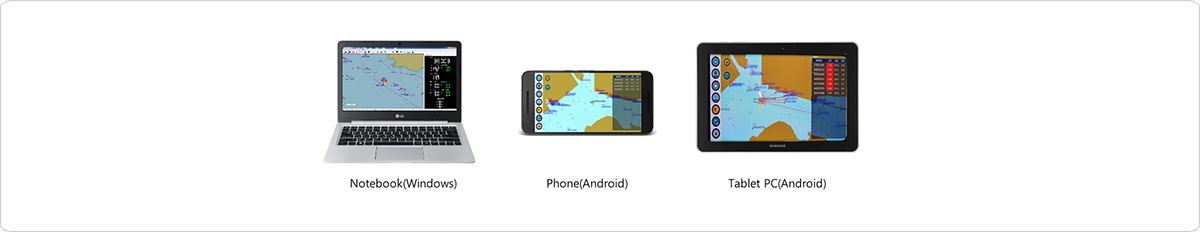

  • Bluetooth embedded Mobile Device Support (Android, Windows)
